Moter Siren MS390 with the external diameter of 80/100mm which makes the output of 40W sound volume.
Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.
Body standard color : RED
Material : STEEL & ABS
Insulation resistance : 100M
¦¸
(at 500 VDC)
Dielectric strength : 500VAC, 50/60Hz in 1 minute
Protection class : IP44 |
| Technical Data |
|
| Model |
Voltage |
Current(A) |
Frequency(Hz) |
decibel |
Packing Size |
QTY |
Weight |
| MS390 |
DC12V |
12.4 |
50/60 |
125db |
50*41*34 cm |
10pcs |
16kg |
| DC24V |
6.8 |
50/60 |
125db |
16kg |
| AC110V |
1.5 |
50/60 |
125db |
22kg |
| AC220V |
1.0 |
50/60 |
125db |
22kg |
|
|

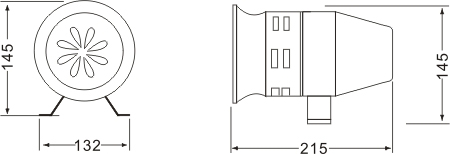

| Shape |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
